Author: Jinhao Wang, Chief Structural Engineer & Technical Director
With 18 years of experience in modular prefabricated construction, I have delivered more than 300 successful projects, covering urban commercial buildings, conventional temporary facilities, and customised modular structures for industrial and remote job sites. Drawing on this broad portfolio, I've accumulated in-depth hands-on expertise addressing complex geological, climatic and operational challenges for on-site mining accommodation. This article focuses exclusively on my field engineering work and tailored technical solutions for a fully functional modular camp built to support integrated mining operations at China Huaneng Group Hetaoyu Coal Mine in Gansu Province.
|
Parameter |
Details |
|
Project Location |
China Huaneng Group Hetaoyu Coal Mine, Gansu Province (Loess Plateau gully mining area) |
|
Total Modules |
62 flat-pack modular units |
|
Total Floor Area |
1,674 m² |
|
Staff Capacity |
Accommodates 140 on-site mining personnel |
|
Construction Period |
38 calendar days (70% faster than traditional temporary masonry construction) |
|
Foundation Specification |
Graded gravel sub-base, ≥95% compaction rate, full anti-seepage geotextile protection |
|
Meteorological Design Standard |
Max diurnal temperature difference 18°C, maximum frost depth 0.8m, 24m/s wind resistance (Beaufort Level 6 gusts) |
|
Site Support System |
Optimised drainage gradients, sediment capture basins, independent canteen and laundry wastewater treatment |

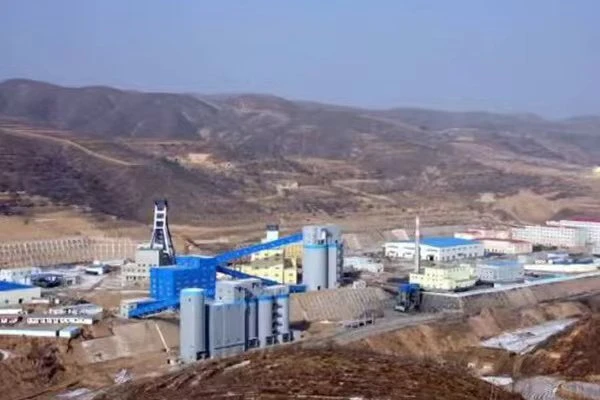

Project Background & Mining Site Constraints
This project was purpose-built to supply a complete, self-contained modular camp that supports full-cycle integrated mining operations. When I took charge of on-site technical design and construction optimisation, the mine's permanent staff dormitories were still under development. The site faced an urgent need for temporary residential quarters, shift control offices, canteen amenities and laundry facilities to sustain 140 on-site mining and infrastructure personnel.
Traditional masonry temporary construction is a widely applied solution for temporary building scenarios. For this project, the standard 90+ day construction cycle could not match the mine's accelerated operational timeline. To accommodate the project's tight schedule, I implemented fully customised flat-pack modular units adapted to local mining site conditions. The entire on-site assembly, electrical installation and system commissioning was completed in just 38 calendar days.
The Loess Plateau mining site presented a set of unique site-specific challenges. The local loess soil is highly moisture-sensitive, prone to softening, subsidence and trench collapse after rainfall. Seasonal freeze-thaw cycles create extreme diurnal temperature fluctuations, freezing on-site pipelines overnight and turning ground surfaces muddy and unstable during daytime thaw. Long-term heavy coal transport has deteriorated mountain access roads, complicating module delivery and high-altitude crane installation. Additionally, airborne coal dust present on-site requires reliable airtight sealing, thermal stability and dust-proof electrical safety designs for long-term building operation.
General modular products are well-suited for conventional construction environments with stable geology and mild weather. Given the mine's combined geological and climatic characteristics, I adopted targeted structural refinement and site-aligned construction workflows to better satisfy the project's operational and safety requirements.
On-Site Technical Optimisations & Mining-Tailored Solutions
Foundation Reinforcement for Collapsible Loess Terrain
During foundation excavation, unexpected light rainfall triggered partial collapse of newly dug service trenches. I immediately suspended all trenching activities and led my team to drain ponded water and clear loose, unstable soil on-site.
To adapt to the mine's special loess geology, I optimised the full foundation construction process. I adjusted trench slope angles, installed anti-seepage geotextile on all sidewalls, replaced soft topsoil with graded gravel sub-base layers, and enforced a minimum soil compaction rate of 95%. I also updated site protocols to arrange trenching work reasonably according to weather conditions and mandate compaction re-inspection after precipitation. These targeted adjustments effectively improved foundation stability and eliminated geological risks for long-term camp operation.
Transportation Safety & High-Wind Installation Control
The rugged mountain access roads required enhanced protection during module transportation. I guided the construction team to adopt low-speed transportation, professional rubber unloading buffers and soft-sling integral hoisting to protect modular unit structural integrity and sealing performance.
During the installation peak, Level 6 instantaneous wind gusts occurred frequently across the open mining yard. I halted all lifting operations in a timely manner, secured crane equipment, and arranged temporary structural bracing for partially installed modules. Installation and calibration work resumed only after wind speeds returned to safe thresholds, ensuring standardised construction and zero safety incidents.
Dust-Proof Electrical & Site Drainage Customisation
Considering the long-term high-dust operating environment of mining areas, I upgraded conventional electrical fittings to industrial-grade dust-tight and waterproof enclosures. All modular units were equipped with complete lightning protection and grounding systems to guarantee stable and safe electrical operation under mine-site conditions.
To resolve seasonal ponding and loess slope erosion caused by spring thaw, I optimised on-site drainage gradients, added sediment capture basins, and built independent wastewater treatment facilities for canteen and laundry areas. This systematic optimisation realised standardised sewage discharge, improved site drainage efficiency, and maintained the stability of the surrounding loess terrain.
Quantified Project Core Benefits
This custom mining modular camp brought targeted practical improvements for integrated mining operation management, covering construction efficiency, site adaptability and whole-cycle economic performance.
Accelerated Project Deployment: The modular construction approach shortened the overall project timeline by 70%, delivering fully functional staff accommodation and office facilities within 38 days. This precisely matched the mine's urgent staffing arrangement schedule and ensured continuous progress of underground mining construction.
Enhanced Site Adaptability & Operational Safety: Customised loess-adaptive foundation treatment, wind-resistant construction measures and dust-proof electrical configurations enable the camp to operate steadily under complex geological and meteorological conditions, fully meeting mining-site safety standards.
Optimised Long-Term Economic Benefits: All flat-pack modular units feature full disassembly and reusability. The flexible deployment mode reduces repeated investment in temporary facilities and lowers long-term operating costs for mining enterprises.
Project Completion & Comprehensive Case Summary
After the completion of construction and system commissioning, I participated in multi-party joint inspection and final acceptance. The camp passed full-scale tests on water and electricity supply, fire pressure performance and smoke alarm linkage functions. In April 2025, the multi-functional modular camp was officially put into service to support daily living and office demands of on-site mining personnel.
This Hetaoyu Coal Mine project verifies the practical value of scenario-oriented modular design solutions. Both traditional temporary buildings and general modular constructions have their applicable scenarios in the construction industry. For large-scale integrated mining sites with unique loess geology, frequent gusty winds, obvious seasonal temperature changes and long-term dust interference, custom-tailored modular camps can better match on-site working conditions and safety specifications. Through targeted foundation optimisation, wind-resistant construction management, dust-proof electrical upgrading and systematic drainage design, this project achieved rapid delivery, stable long-term operation, complete functional coverage and flexible asset reuse, providing a reliable practical reference for temporary workforce supporting facilities in complex mining projects.
FAQ
Q1: Can these modular mining camps adapt to collapsible loess and poor-bearing soil conditions?
A: Yes. I formulate custom foundation solutions based on actual geological survey data, including gravel replacement, anti-seepage protection and high-precision compaction control, which fully adapt to complex soil conditions commonly seen in mining areas.
Q2: What wind resistance level can this modular mining camp reach?
A: The camp adopts site-specific structural reinforcement design based on local meteorological data, which can resist instantaneous Level 6 strong gusts common in open mining yards.
Q3: Are the modular units reusable for subsequent mining projects?
A: All flat-pack modular units are fully demountable and relocatable. They can be reused in multiple mining projects, effectively reducing repeated temporary construction costs.
Q4: Can the modular camp integrate multiple functional areas for mining staff?
A: Absolutely. I provide integrated custom layouts including staff dormitories, working offices, canteens and laundry rooms, equipped with complete fire safety, drainage and wastewater treatment systems to meet comprehensive operational needs of mining sites.
